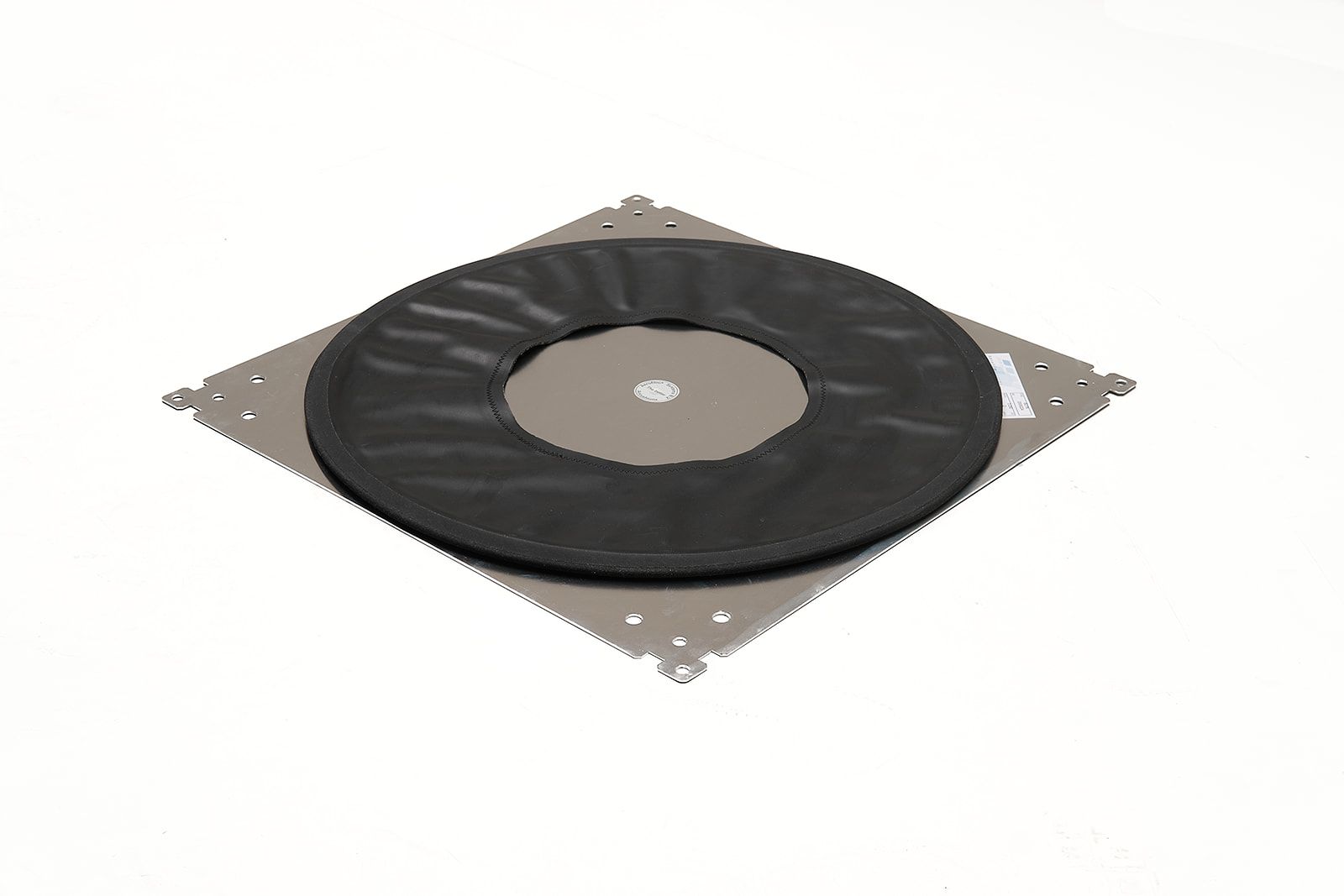

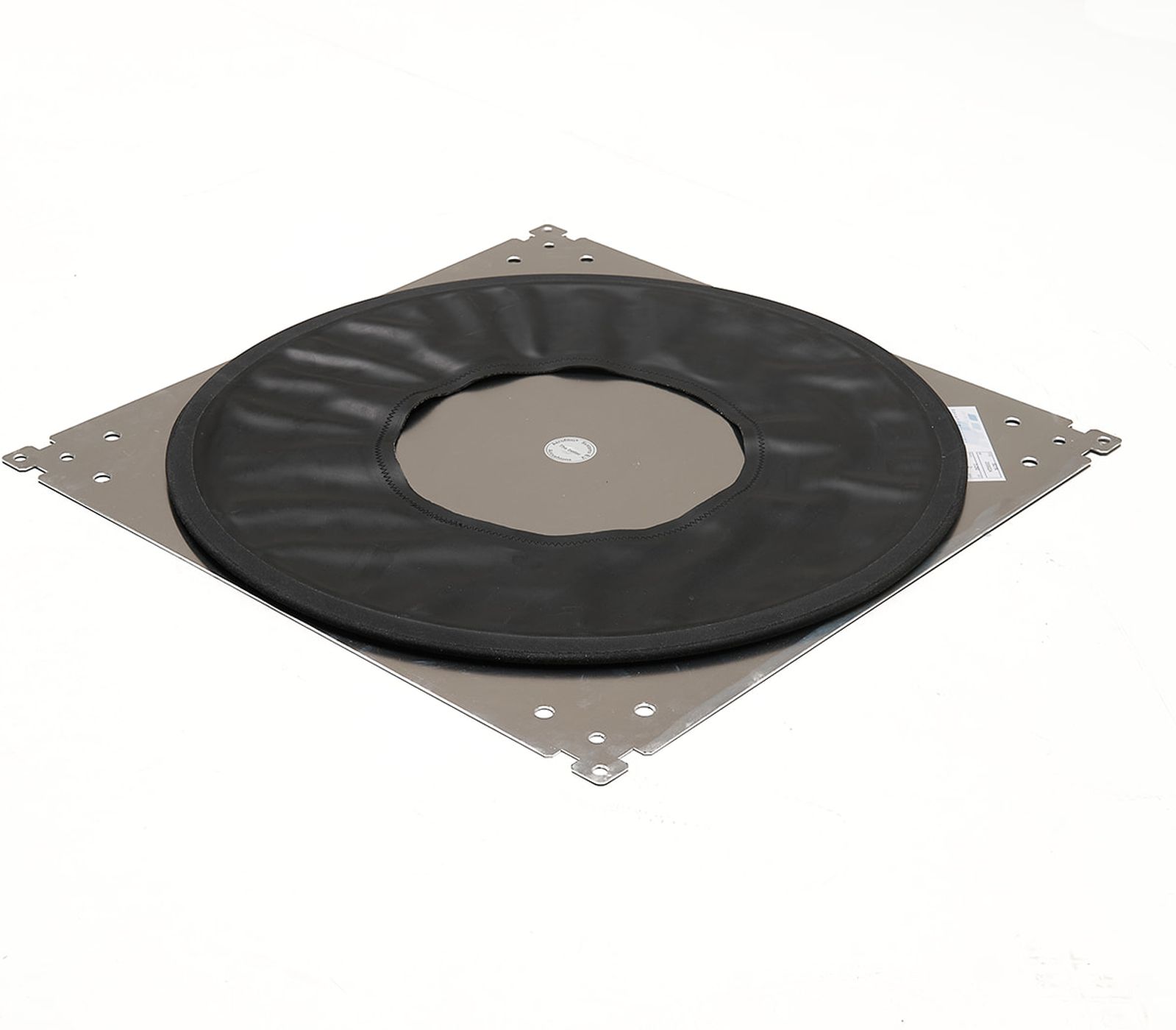

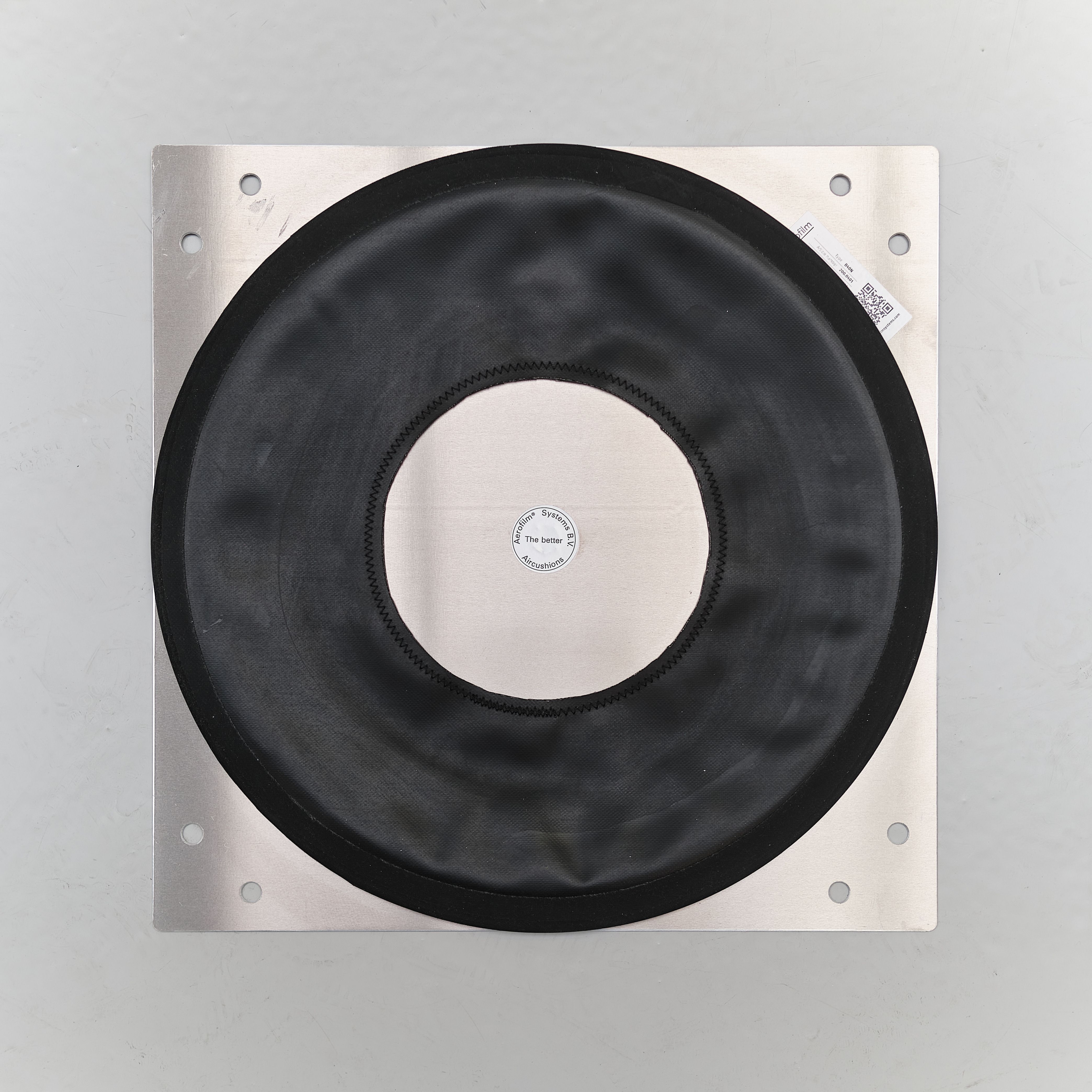

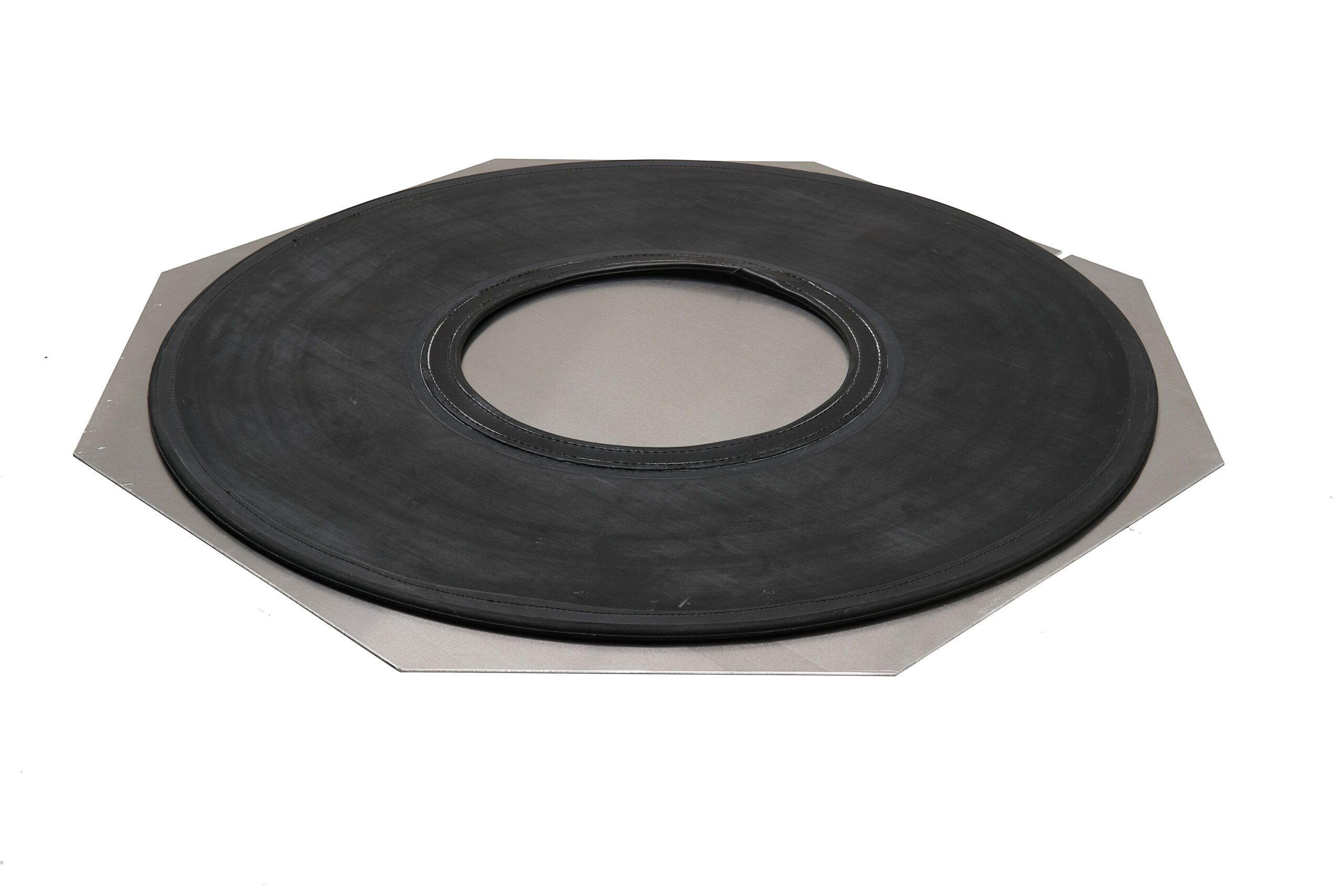

Neoprene Air Casters
Reinforced neoprene air casters for the heaviest loads and highest pressures, from 1,100 to 175,000 lbs.
- 1,100 to 175,000 lbs per caster
- Up to 78 psi working pressure
The workhorse of air caster transport
Neoprene is the strongest membrane material used in air casters, and the most widely specified. Reinforced, flexible neoprene stands up to rough conditions and high temperatures, which makes these casters the usual choice for machines, transformers and large structures.
A neoprene membrane can run at higher pressure than polyurethane and, at the same diameter, lifts the load higher. Combined with diameters from 8 to 60 in, that gives the highest capacities in the range: up to 175,000 lbs per caster.
Tell us the weight and floor and we will size the casters, support plates and air supply for you.
Other replacement air casters
See details
Air Jacks
Pneumatic jacks that raise a heavy assembly a controlled amount so air casters or transport dollies can be placed underneath — no crane required.
Air Planks
Low-profile beams carrying two or more air casters, for long, narrow or unevenly distributed loads.
Embedded Air Caster Systems
Air casters embedded in a platform or frame, for permanent or semi-permanent load-moving installations.
Gap Crosser
Air casters that glide over joints and cracks, for floors that are not completely sealed.
Load Module Systems
Complete load modules with air casters for moving very heavy or large loads, with centralised control.
Air Caster Roll Movers
Roll movers with built-in air casters for manually repositioning heavy, compact loads over short distances.
Air Jacks
Pneumatic jacks that raise a heavy assembly a controlled amount so air casters or transport dollies can be placed underneath — no crane required.
Air Planks
Low-profile beams carrying two or more air casters, for long, narrow or unevenly distributed loads.
Embedded Air Caster Systems
Air casters embedded in a platform or frame, for permanent or semi-permanent load-moving installations.
Gap Crosser
Air casters that glide over joints and cracks, for floors that are not completely sealed.
Load Module Systems
Complete load modules with air casters for moving very heavy or large loads, with centralised control.
Frequently asked
Common questions before a first air caster project.
A sealed, flat and level concrete floor. Open joints, cracks and slope all increase air consumption and reduce lift. Our brochure “Air caster transport and the floor” covers the requirements in detail.
