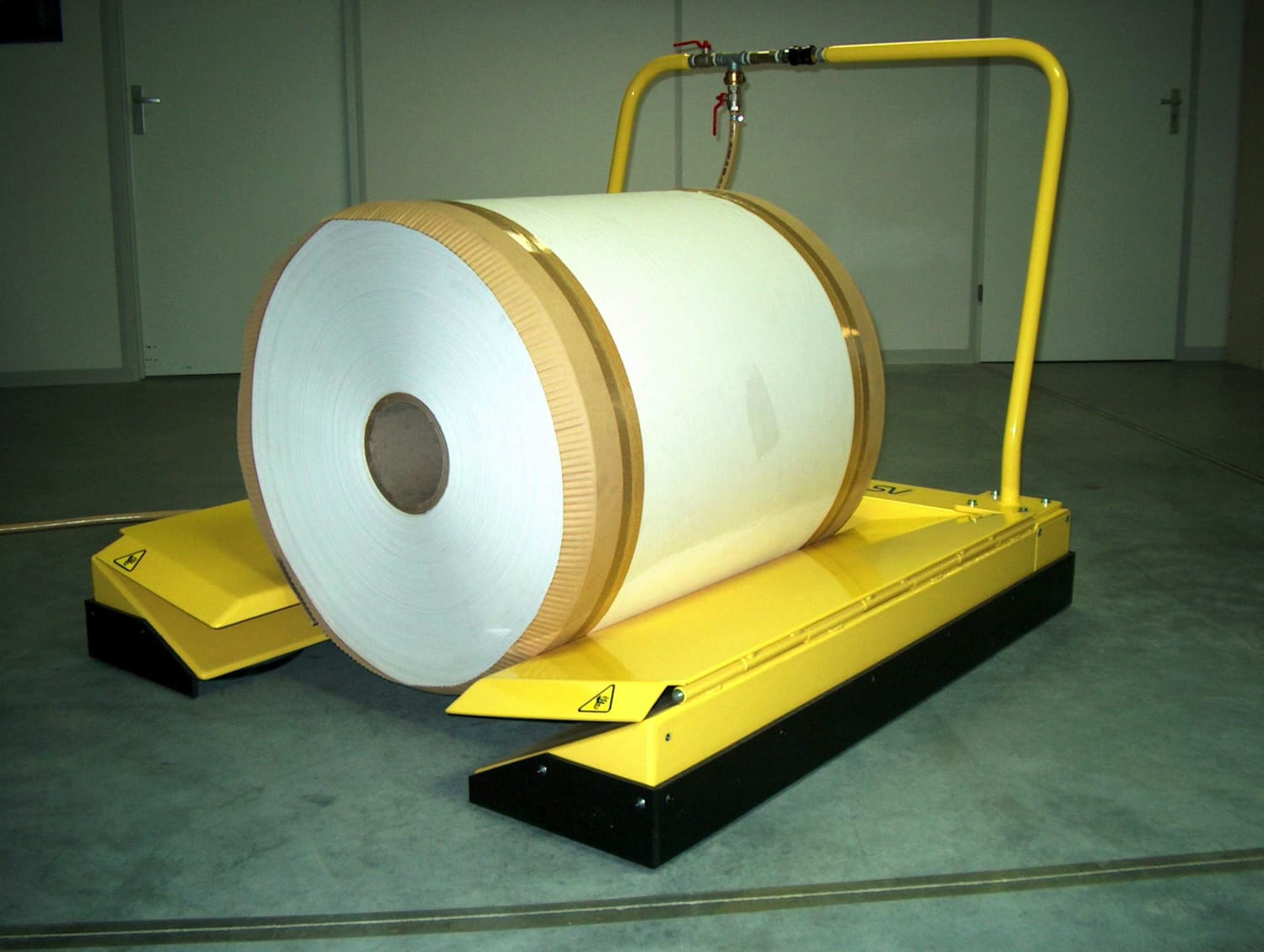

Air Caster Roll Movers
Roll movers with built-in air casters for manually repositioning heavy, compact loads over short distances.
Aerofilm Systems

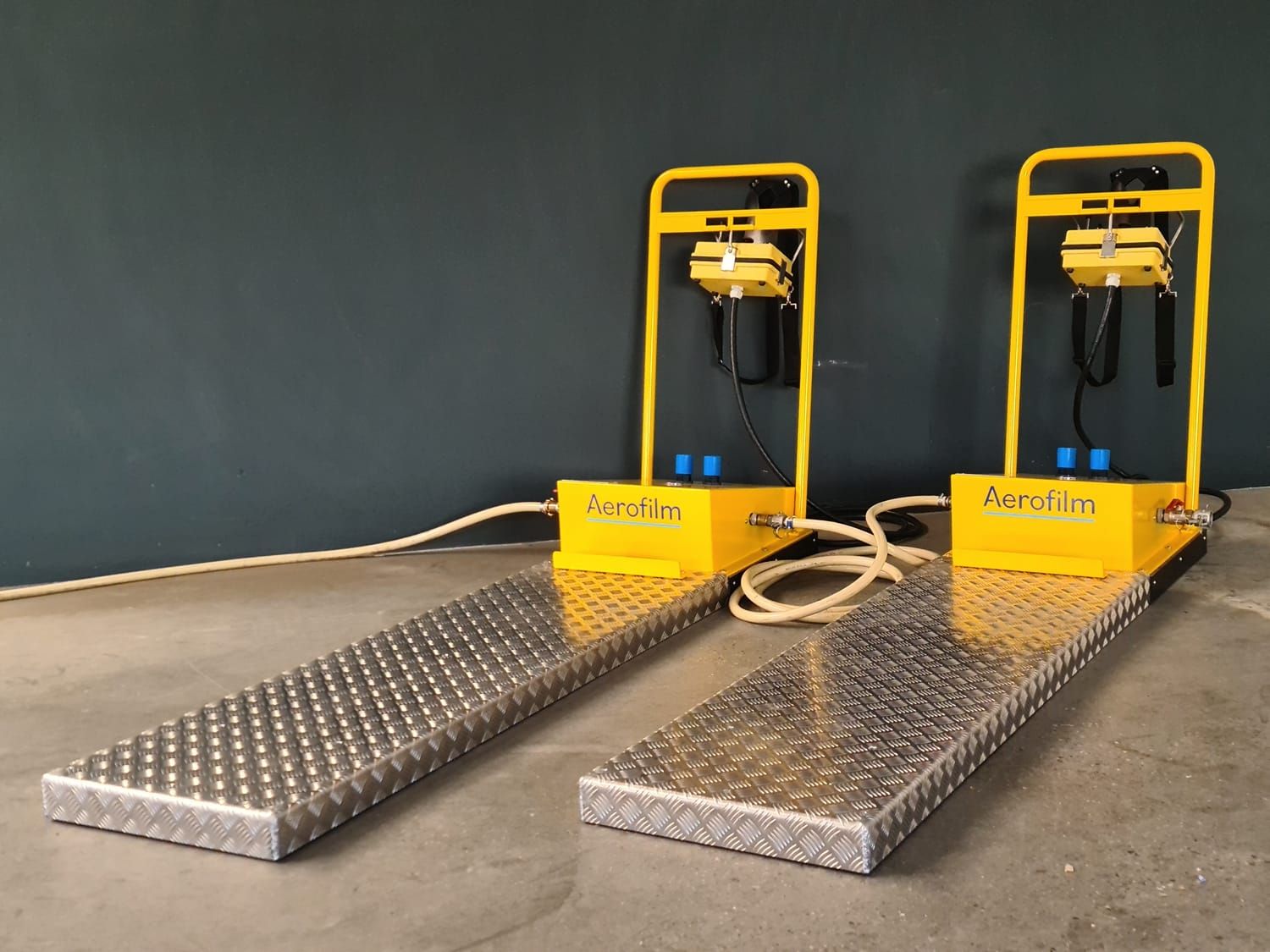

Air Planks
Low-profile beams carrying two or more air casters, for long, narrow or unevenly distributed loads.
Models
- AP-6
- AP-8
- AP-12
- In stock, short lead times
- Engineering support included
- Manufacturer warranty
Engineered by Aerofilm since 1972 · Exceeds ASME B30.1 2:1 overload · Used across aerospace, machine building and heavy fabrication
Products
Air Caster Roll Movers
Roll movers with built-in air casters for manually repositioning heavy, compact loads over short distances.
Air Jacks
Pneumatic jacks that raise a heavy assembly a controlled amount so air casters or transport dollies can be placed underneath — no crane required.
Models
All air planks work at 30 psi. Values are indicative — confirm the configuration for your application.
| Model | Capacity | Length | Air casters | Air consumption | Weight |
|---|---|---|---|---|---|
| AP-6 | 12,000 lbs | 6 ft | 2 | 36 CFM | 70 lbs |
| AP-8 | 20,000 lbs | 8 ft | 2 | 48 CFM | 95 lbs |
| AP-12 | 40,000 lbs | 12 ft | 4 | 96 CFM | 160 lbs |
Product information
Aerofilm air planks are low-profile beams carrying two or more air casters, for long, narrow or unevenly distributed loads.
Choose the AP-6 or AP-8 beam with two air casters, or the AP-12 with four air casters for loads up to 40,000 lbs.
Specifications on this page are indicative and depend on load, adjustment and floor quality. Contact us to confirm the configuration for your application.
Frequently asked
Common questions before a first air caster project.
A sealed, flat and level concrete floor. Open joints, cracks and slope all increase air consumption and reduce lift. Our brochure “Air caster transport and the floor” covers the requirements in detail.
